Theater Light Mixer Theatre 12/24

Theater Light Mixer Theater 12/24

Cod.63407

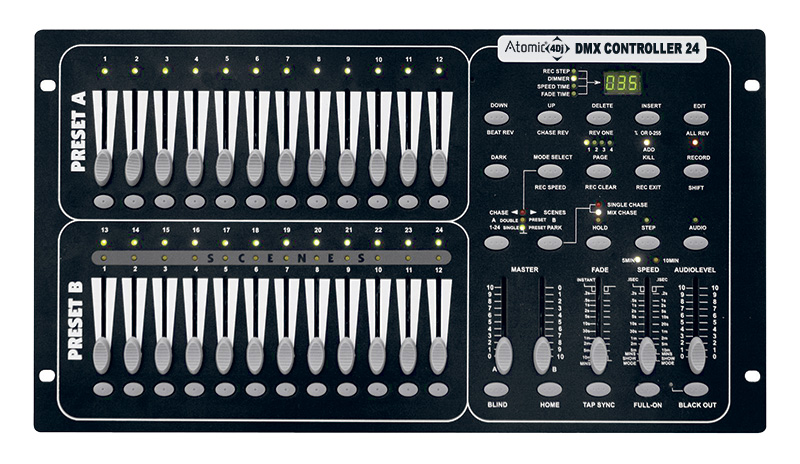

MAIN FEATURES

• 24 Channels DMX controllable Light Mixer

• 12 scenes with Fader recall

• 4 Memory Banks allow to store up to 48 programs (around 1000 scenes)

• 2 presets with 12 faders with separated master

• 3 modality of functioning: 1-24 ch, A Double Preset B and Chase-Scene

• Connector DMX-In with polarity selector

• MIDI control available by the ports IN/OUT/THRU Midi 5pin

• Sound Control Function with integrated microphone or through Line-In input

• Black Out Function

• Fader Speed and Fade Time

TECHNICAL SPECIFICATIONS

Power Supply: 230 V AC, 50 Hz via 12 V DC, 500 Power Supplier included

Power Consumption: 4 W

Number of DMX channels: 24

Sound-control: through integrated microphone or RCA line input (min. 100 mV)

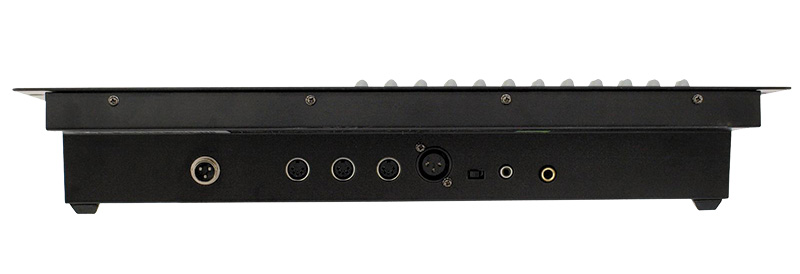

DMX512 output: XLR Cannon 3pin

Midi Connections: IN/OUT/THRU 5pin

Dimensions: 482 x 266 x 71 mm

Rack: 6U

Weight: 4.8 kg
