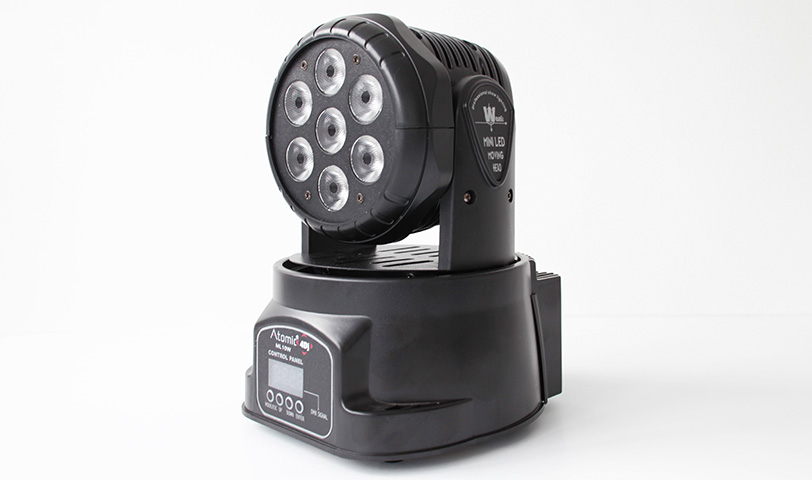

Moving Head ML10 W

Moving Head Led ML10W QCL

Cod.62032

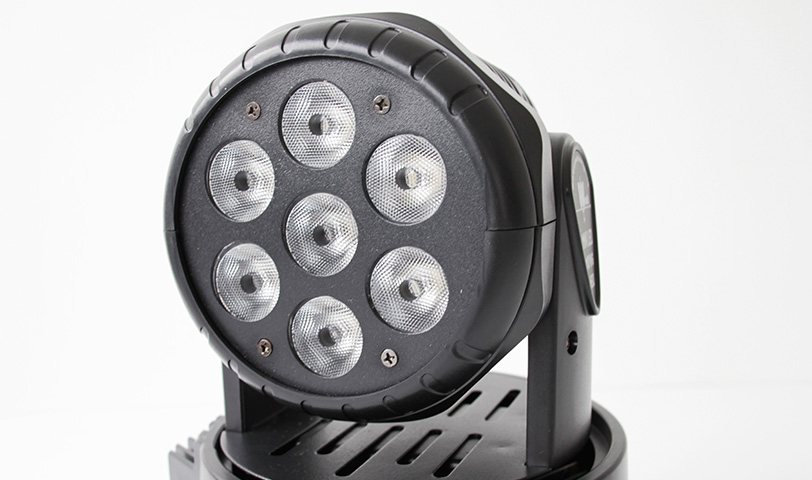

Equipped with 7 Led of 10W RBGW with technology Quad Color Led QCL; Wide range of colors available thanks to the Color-Mixture RGBW system; Operating mode Auto-Run and Sound-control with Master-Slave function.
DMX 512 control with the possibility of set-up at 5 or 13 DMX channels

13 DMX channels required:

1Ch Pan Movement

2Ch Pan 16bit

3Ch Tilt movement
4Ch Tilt 16bit

5Ch Pan-Tilt Speed

6Ch Shutter Strobe

7Ch Red Led Dimmer

8Ch Green Led Dimmer

9Ch Blue Led Dimmer
10Ch White Led Dimmer

11Ch Macro Colors

12Ch Internal programs Speed

13Ch Internal programs

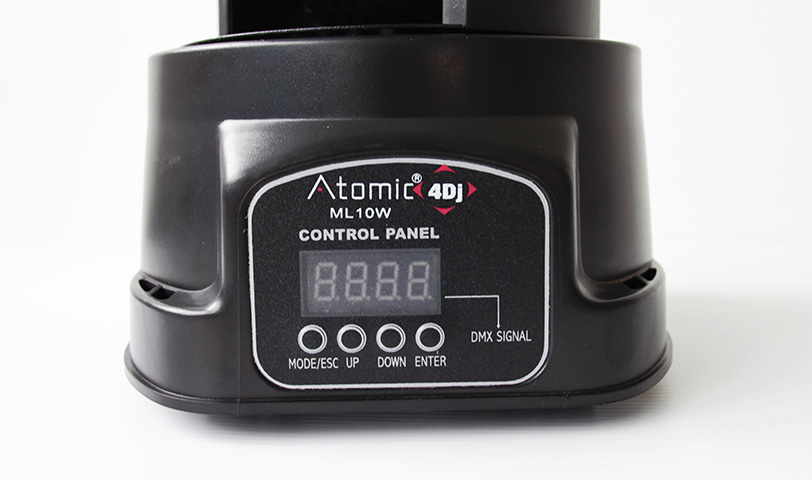

LCD Display to set DMX channel and settings of every function.
Installation clamp for Truss mounting (American) Included.

Power supply VDE Cable included.

Fuses to protect against overcharges and short-circuits
All the advantages of Led technology: average Led Life more than 50.000 hours, Eco-Friendly with low energetic consumption, minimum heat emissions, no maintenance.
Very bright colors.

TECHNICAL SPECIFICATIONS:

Power Supply: AC110-230V, 50Hz
Power Consumption: 80W

Light source: 7x10W RGBW Led

DMX 512 control: 5 or 13 DMX Channels required
Dimmer: 0-100 % mechanical

Control Connections: 3pin XLR Cannon In/Out

Power Supply connection: Male VDE connector
PAN Movement: 540°

TILT Movement: 270°
Beam Lenses Angle: 10°

Protection Grade: IP20

Dimensions: 16x17x24,5cm

Weight: 3,5kg
