Speaker Joy Sub 15A

Active Subwoofer Joy Sub 15A 600W RMS

Cod.10853

ABS Active Subwoofer with Bass-Reflex system, it is ideal for every active speakers of the Joy Series.

Excellent price/quality ratio. It can works on 2,1 configuration as in a 2 Joy 8A or Joy10A speakers and 1 subwoofer Joysub 15A.

This type of configuration is possible thanks to the input and output with double balanced XLR connector to which can be applied a 100 Hz Frequency Cut for the satellites speakers.

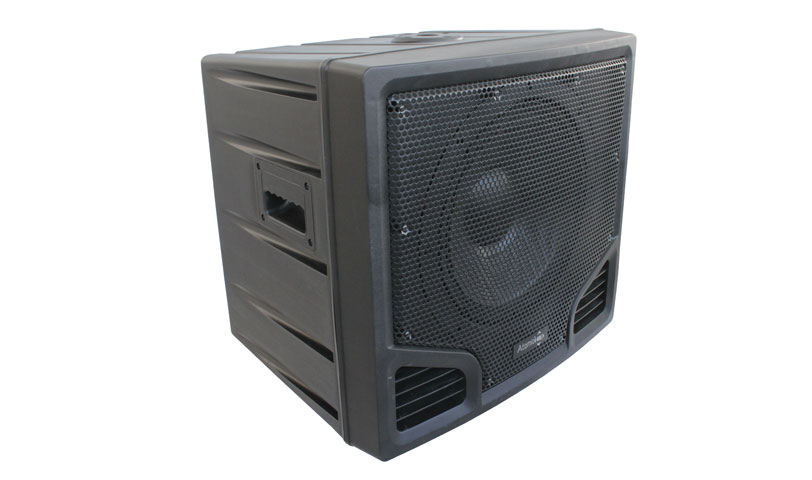

• Black ABS Cabinet with bass-reflex system
• Standard hole for satellites housing

• Maximum power 1200W

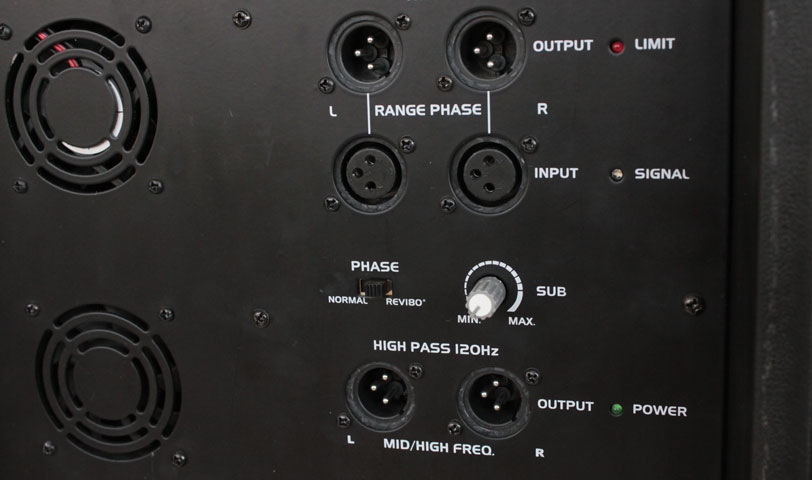

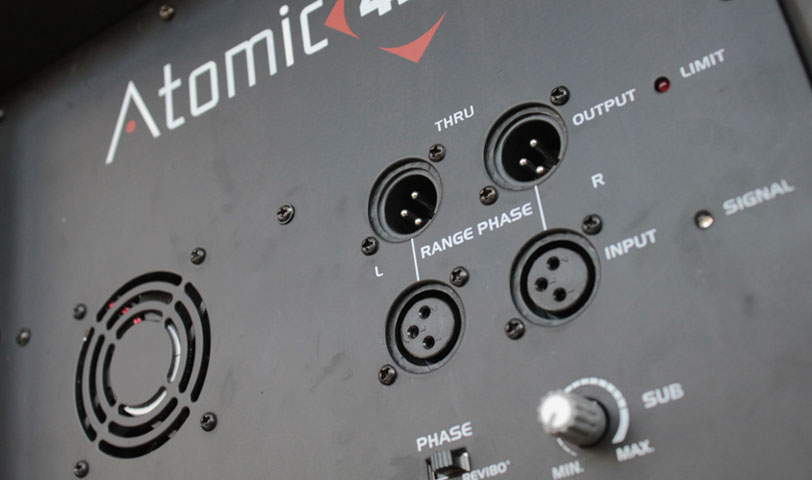

• Inputs XLR L+R

• Outputs XLR L+ R with Frequency Cut or Link

• Woofer of 15″

• Dedicated Knob for Volume control

• Phase inversion selector

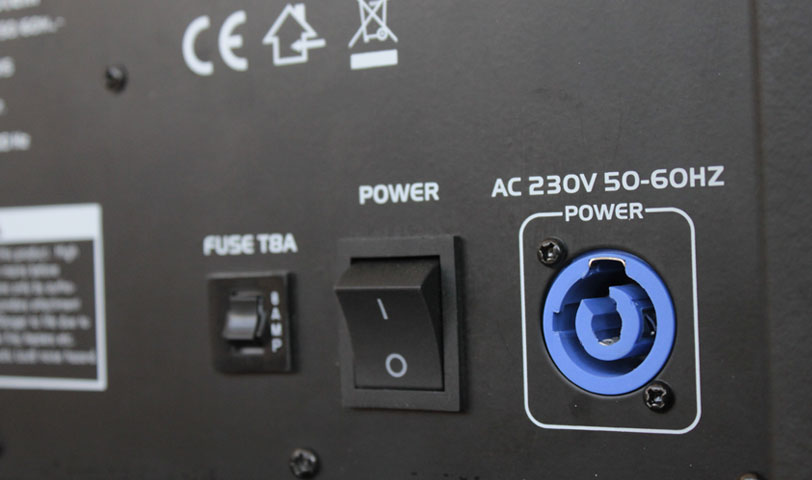

• Fuse to protect against overcharges and short-circuits

• Power Supply through powercon connector

TECHNICAL SPECIFICATIONS:

Power supply: 230 V AC, 50 Hz ~

Power Usage: 600 W

Rated Power: 600 W RMS
Maximum Power: 1200 W
Max. SPL: 105 dB
Frequency Range: 35 Hz – 200 Hz
Type: Bass-reflex system
Cabinet: ABS Black Woofer 15”

Inputs: 2x Cannon XLR L + R
Outputs: Link 2x Cannon XLR L + R / Xover 2x Cannon XLR L + R

Dimensions (H x W x D ): 630 x 690 x 550 mm

Weight : 40 kg
